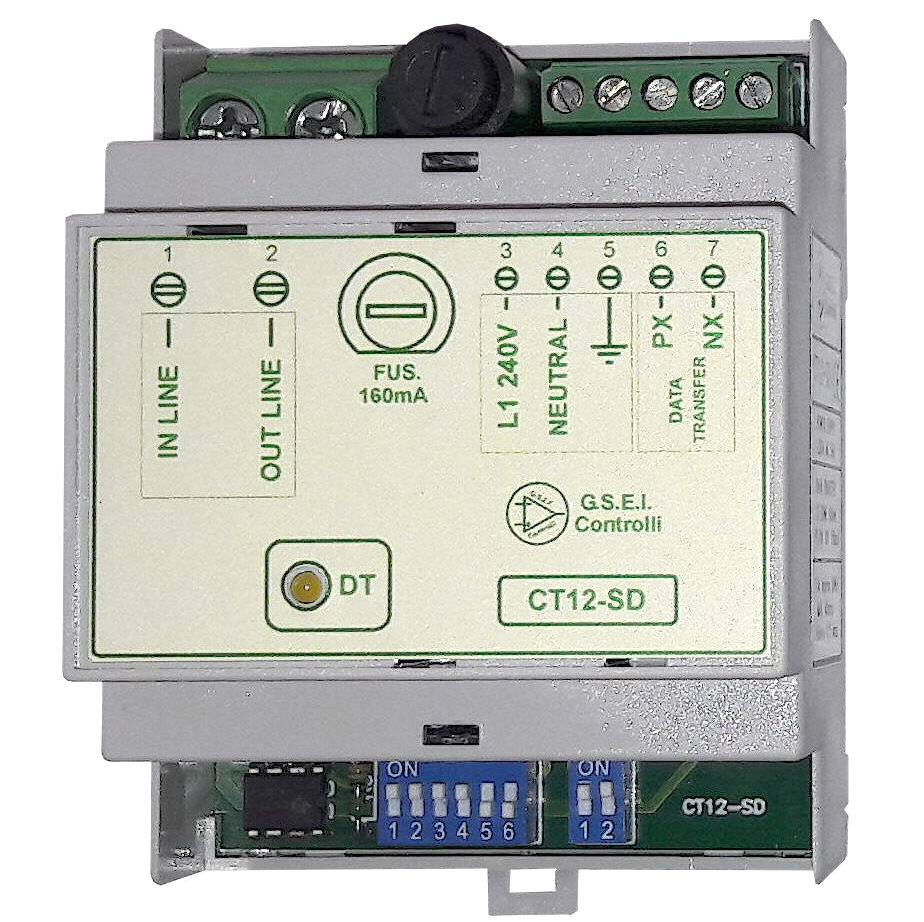

CT12-SD
CT12-SD control unit to control 12 resistive zones with with two
wires serial transmission for MR12-SD receivers and MST12-SD.
With control insertion to rotation. adaptive.
Limit of power with transducer. internal 10KW 230V
or external transducer X / 5.
wires serial transmission for MR12-SD receivers and MST12-SD.
With control insertion to rotation. adaptive.
Limit of power with transducer. internal 10KW 230V
or external transducer X / 5.
Description
This system allows the control of loads resistive heating
distributed across multiple surfaces by taking electrical energy on site.
It is possible put in this way in the most convenient spot
for reading electrical user the CT12-SD control unit and connect it to
internal transducer from 10KW or T.A. External X / 5.
Via a serial two-wire system, the controller can communicate
with MR12-SD relay (mechanical) or MST12-SD (static) which when enabled
by a thermostat on the spot can be activated or deactivated
according to the power level set and helpful.
