TE-S1
TE-S1 Thermostat with the floor temperature
and programmable hysteresis.
Description

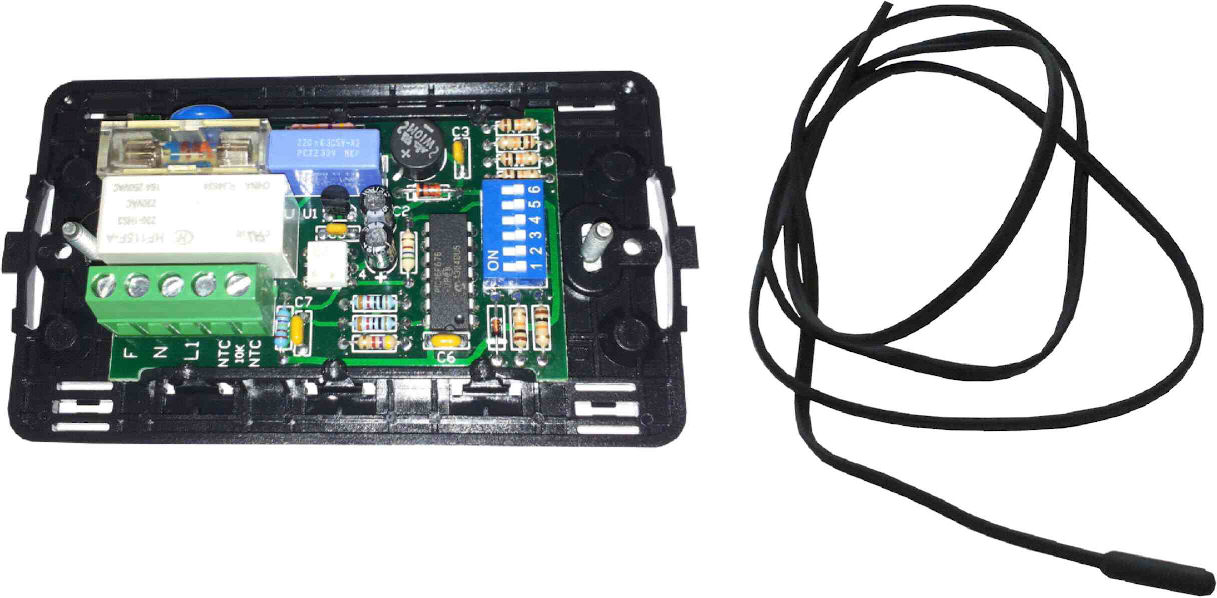

Thermostat for the floor, suitable to receive
an external probe NTC 10K.
By dip switches you can set the temperature
of intervention from 20 to 35 ° C and select the
hysteresis of reentry from 1 to 4 ° C.
The thermostat is used to limit the temperature
of the floor and as electrical safety.
The first time you turn the thermostat to measure
the temperature of the floor, if below the value
set activates the internal relay (15A 250V ac).
Temperature is reached, the relay opens,
closes again when it reaches the
set temperature minus the hysteresis value chosen.
