MCS-IP, IP-MCS-DA

Description

Module suitable to control with a 15Vdc 30mA logic signal a zero-crossing static relay.
It is able to convert the various control signals that are found within the industrial field,
as potentiometers 1-10K, 0-10V and 4-20MA. These signals are converted into
proportional times (SSR) with 0.5 or 1 Sec. cycle times.

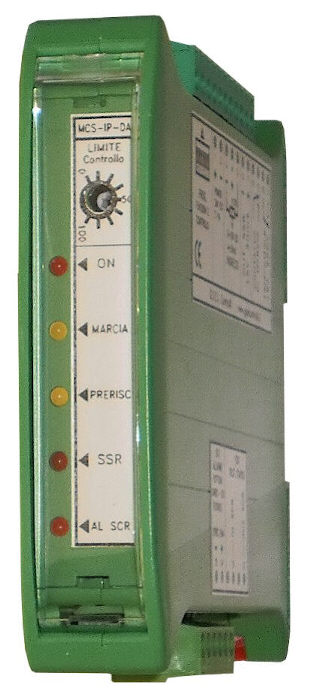

On the front there is a trimmer for limitation of the control signal and the event signalling
leds. It is able to run preheating cycles with fixed percentage of 30% for programmable
times of 0.5 -1-2 or 4 min.
Provides for the management of run and stop of the semiconductor, through a command
that enables at first a contact for the activation of a safety contactor and then the SSR
output for relay control.
